Detailed Product Description
|
Color: |
Beige,nature |
Row: |
Single |
|
OEM Cable Assy: |
Yes |
Type: |
Four Wall Type With Friction |
|
PC Board Mounting Direction: |
SMT,Side Entry |
Package: |
Tube Packaging Or Reel |

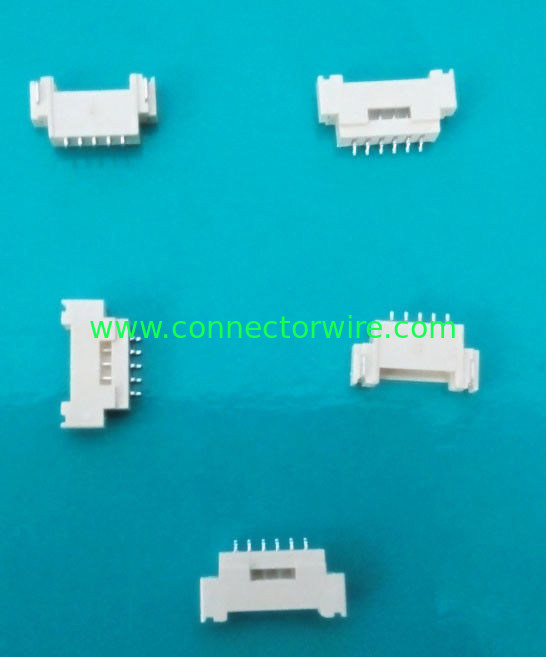

Right Angle DF16 SMT Wire To Board Connectors Circuit Board Connectors to LCD Note PC
Quick Detail:
|
Name
|
HRS DF16 SMD connector
|
Application
|
Signal,Power Wire–to-Board
|
|
Connector
|
Header, wafer
|
Circuits/poles/pins
|
6
|
|
Terminal Pitch
|
1.25mm
|
Certificate
|
ROHS, UL,HF
|
Specifications:
|
Crimping Socket
|
Alternative DF16
|
|
Crimp contact for socket
|
Tin-lead plated or gold plated
|
|
Pin Header/wafer
|
Beige, DF16 Horizontal, Right angle SMT
|
|
Pitch Centerline
|
1.25mm
|
|
Circuits/poles/pins
|
6
|
|
Number of Rows
|
Single
|
|
Current rating
|
1A AC,DC
|
|
Voltage rating
|
100V,AC,DC
|
|
Wire range
|
AWG28~32
|
Descriptions:
1) 1.25mm Pitch Super low profile crimping connector, This is a connector special for right angle which has pursued a low profile on the board.
2) Correspond to Automatic Mounting
The header has the vacuum mount face which enables the vacuum absorption and the automatic mounting by the embossed tape
packaging. In addition, the tube packaging can be selected.
3) Four Wall Type With Friction to Board by Socket
They are equal Hirose, Digi-Key, TE AMP, TYCO JST,Yeonho, Civilux, Samtech ect famous parts.
Application:
LCD, Note PC, PCB,LED lamp,Mobile Terminal Small business equipment, Video camera etc.
If you can’t find the part number here, please contact us or send your drawing or part number.
Customized cable or Wire hanresses assemblies sample orders are welcomed!
