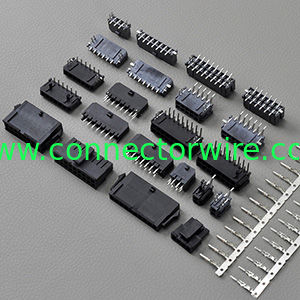

Replace Molex Micro Fit 3.0 Wire Board Connectors To Electronic Communication
Detailed Product Description
|
Color: |
Black |
Rows: |
1 Or 2 |
|
Mounting Ears: |
With Or Without |
|
|
Quick Detail:
|
Name
|
Molex Micro-fit connector
|
Application
|
Power, Wire-to-Board, Wire-to-Wire, PCB
|
|
Connector
|
Molex 43045 micro fit
|
Circuits/poles/pins
|
2~24
|
|
Pitch
|
3.0mm
|
Certificate
|
ROHS, UL,HF
|
Specifications:
|
Housing
|
Equivalent of Molex Micro-Fit receptacle Housing, plug housing
|
|
Crimp terminal
|
43030 Male and female, tin plated
|
|
Header/wafer
|
43045 SMT, Thru/DIP; Straight angle/Right angle
|
|
Pitch Centerline
|
3.0mm
|
|
Circuits/poles/pins
|
2~24
|
|
Number of Rows
|
Single or Dual
|
|
Current rating
|
5A AC,DC
|
|
Voltage rating
|
250V,AC,DC
|
|
Wire range
|
AWG20~24
|
Application:
Power source for electronic communication, PCB assemblies, Signal-jumpers; high-power solutions, Computers, Notebook PC,LCD, Digital camera, PAD, Led lamp, Scanner, BT alarm button, taximeter, Fingerprint machine, flat colorful TV, Business machine, Telecommunications, Home appliances, Medical equipment, Cell phone, Security systems, Car, ATM Machines, Inkjet, MFP/LBP, Projector, RAILWAYPRODS, etc. industrial.
Descriptions:
1. High-density, low-power connector system
2. Wire-to-wire and wire-to-board can be selected
3. Configurations with SMT and through-hole options,
4. Be replacing Molex, JST, JAE, AMP, TYCO, Hirose, Yeonho, Civilux, Samtech ect famous parts.
Eshine can refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.
Type connector:
Wire Specs: AWG
UL Style:
Other end:
Assembly connector
Completer strip/Tin plate:
Semi Strip/Tin plate:
OEM Wire harnesses are produced on our fully automatic, high speed, discrete wire, IDC termination machines which assure superior quality and competitive prices.
