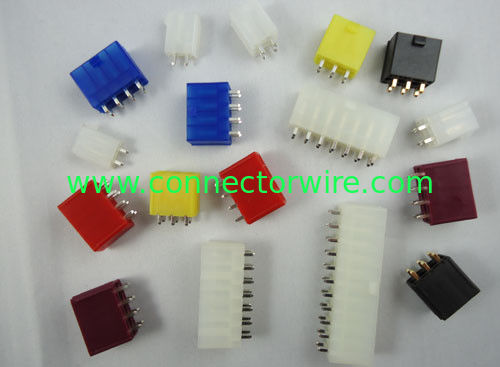

AMP 1586041 - 2 Pcb Connectors Wire To Board Right Angle 2Pins 0.165 Inch

AMP 1586041 - 2 Pcb Connectors Wire To Board Right Angle 2Pins 0.165 Inch

    • AMP 1586041 - 2 Pcb Connectors Wire To Board Right Angle 2Pins 0.165 Inch
    • AMP 1586041 - 2 Pcb Connectors Wire To Board Right Angle 2Pins 0.165 Inch
  • AMP 1586041 - 2 Pcb Connectors Wire To Board Right Angle 2Pins 0.165 Inch

    Product Details:

    Place of Origin: China
    Brand Name: ES
    Certification: UL,Rohs,SGS
    Model Number: ES4200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: USD0.05
    Packaging Details: PE bag,Reel,Tape,Tray
    Delivery Time: 5~7 business days
    Payment Terms: T/T,Wester Union,Paypal
    Supply Ability: 100000000PCS
    Contact Now
    Detailed Product Description



    Detailed Product Description
    Pitch: 0.165in,4.2mm Row: Single Or Double
    PCB Direction: Through Hole,SMD Color: Black,White,Red
    Contact Type: Right Angle And Stragiht Angle Pins: 3~12,2~24





    AMP 1586041 - 2 Pcb Connectors Wire To Board Right Angle 2Pins 0.165 Inch





    Quick Detail:



    Name

    TE VAL-U-LOK connector

    Application

    Power, Wire-to-Board, Wire-to-Wire, PCB

    Connector

    AMP 1586041

    Circuits/poles/pins

    2~24

    Pitch

    0.165”4.2mm

    Certificate

    ROHS, UL,HF





    Specifications:



    Housing

    Equivalent of Tyco AMP receptacle Housing, plug housing

    Crimp terminal

    43030 Male and female, tin plated

    Header/wafer

    Tyco 1586041-2,AMPHENOL: MF42-RD-02 Thru hole/DIP; Top, side entry

    Pitch Centerline

    4.2mm

    Circuits/poles/pins

    2~24

    Number of Rows

    Single or Dual

    Current rating

    5A AC,DC

    Voltage rating

    250V,AC,DC

    Wire range

    AWG20~24





    Descriptions:



    Alternate TE AMP VAL-U-LOK R/A HDR V2 - 1586041-2 to Tyco 1-1586041-2

    The VAL-U-LOK connector system offers wire-to-wire and wire-to-board connections with contacts on a 4.20 mm (.165 in) centerline and current ratings up to 9 Amps max. per line. Plug and receptacle housings allow wire-to-wire and wire-to-panel configurations and header assemblies offer wire-to-board connections in vertical and right angle configurations. VAL-U-LOK connector system configurations are available in dual row 2-24 position and 2-12 position single row.

    They can be replacing AMP, TYCO, Molex, JST, JAE, Civilux, Samtech ect famous parts.





    Application:

    Consumer
    White goods

     Industrial



    Automation equipment
    Industrial networks

    Networking


    Rack-mount server
    Router/Switch



    OEM wire harness, cable assemble orders are welcomed!
