Place of Origin: | CN |
Brand Name: | ESHINE |
Model Number: | ESC |
Minimum Order Quantity: | 1000PCS |
---|---|
Packaging Details: | polybag/gift box / blister |
Payment Terms: | Western Union, T/T, PAYPAL |

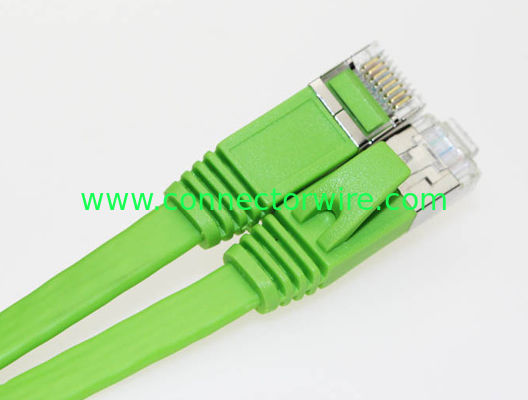

Made In China UL Flat Ethernet Cable Cat7 Cat6 Cat5e Cable 4 Twisted Pair Network Cable For CCTV System Computer Network
Mode | UTP Cat5 Cat5e Cat6 Cat7 Lan Cable |
Conductor Size | 22AWG/23AWG/24AWG/26AWG/28AWG |
Insulation Materials | PE&HDPE |
NO.of Connector | 4P/8P |
Conductor Materials | BC/CCA/CCS/CCAW/CCAG/or Customize |
Jacket | PVC ROHS PVC LSZH |
Color | Green,Grey, Blue, Red, Yellow |
Cable length | 0.5M~30M or Customized |
Shield | Unshielded twisted pairs |
Insulation Thickness | 0.2mm |
Stretching Resistance | (max)250N |
Impedance | 100±15%Ω at 1~100MHz |
Stretching Resistance | 250 |
Working Capacitance(Max.) | 5.4nF/100m |
Insulation Resistance | 10000MΩ.km |
DC Resistance Imbalance | 2.50% |
Operating Temperature | -40 °C - +70°C |
Application |
Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems,Telecommunication, Computer networks, Instrumentation, Patch Panels and, CCTV system , Alarm system , Telecom project , Computer Networking applications ect. |
Features:
100% Brand new and high Quantity Cat7 cables
Cat7 PC-HUB cable with high speed. Long transmission distance, small transmission loss, wear resistance, resistance to pressure.
Deliver performance to 550MHz and 1000Mbps.
Male to Male RJ45 Ethernet Network cable. Compatible with all RJ45 jack configurations
Ultra thin flat cable with thickness of 1.4mm!Flexible, Durable, Flame-Resistant.
Imported SRPVC applied.
