TE Tyco Standard Rectangular Connectors Housing Equal AMP 794616-4 DBL ROW HSG 4 POS

TE Tyco Standard Rectangular Connectors Housing Equal AMP 794616-4 DBL ROW HSG 4 POS

    • TE Tyco Standard Rectangular Connectors Housing Equal AMP 794616-4 DBL ROW HSG 4 POS
    • TE Tyco Standard Rectangular Connectors Housing Equal AMP 794616-4 DBL ROW HSG 4 POS
  • TE Tyco Standard Rectangular Connectors Housing Equal AMP 794616-4 DBL ROW HSG 4 POS

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: Eshine
    Certification: Rohs,UL,HF
    Model Number: ES3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.01
    Packaging Details: PE bag, Tray, Tape on embossed & Reel, box
    Delivery Time: 5 business days
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 10000pcs/day
    Ship:: DHL,TNT,UPS,FEDEX,EMS
    Port:: Shenzhen, Guangzhou, Hong Kong
    Contact Now
    Detailed Product Description

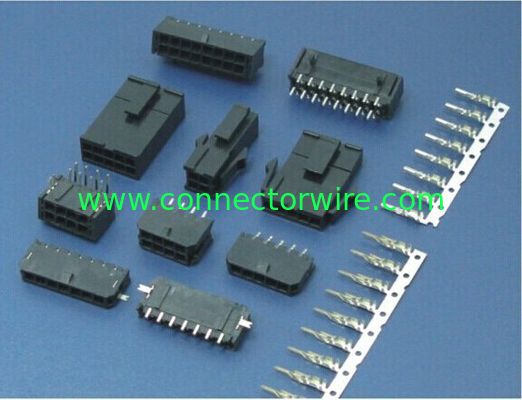

    TE Tyco Standard Rectangular Connectors Housing Equal AMP 794616-4 DBL ROW HSG 4 POS



    Quick Detail:



    Name

    AMP Micro-fit connectors

    Application

    Sound Systems,Signal, Wire-to-wire

    Connector

    plug housing, female socket, contact

    Circuits/poles/pins

    2~24

    Pitch

    3.0mm

    Certificate

    ROHS, UL,HF



    Descriptions:

    Alternative AMP,TYCO  794616 housing connector, equal Molex micro serial wire-to-wire plug housing and female housing, pin terminal, 3.0mm pitch, single row, male & female, 2~24 circuits. It is for demand high-density harness applications.



    They can alternative AMP,TE Tyco, Molex, Digi-Key, JST, JAE, Hirose, Yeonho, Civilux, Samtech ect famous parts.



    Specifications:



    Crimp Housing

    Alternative TE AMP 794616-4,Molex male:43025-(02~24)00,female:43020(02~24)00,43030(02~24)01

    Crimp terminal

    male:0430310001,female:43030-0002,Tin /gold plate

    PCB Header/wafer

    SMD, Thru/DIP; Vertical, Horizontal

    Mates with parts

    43650

    Pitch Centerline

    3.0mm

    Circuits/poles/pins

    2~24

    Number of Rows

    Single

    Current rating

    3A AC,DC

    Voltage rating

    250V,AC,DC

    Wire range

    AWG20~24



    Usage range:

    Medical: Surgical systems, Measuring equipment, Patient monitor,front panel displays, and dental equipment.

    Automotive: Car audio, alarm systems

    Consumer: set top box, DVD players, Computer peripherals, printers, scanner

    Industrial: Led lighting, Robotics, process controls

    Commercial Vehicle: Sound systems

    If you can’t find the part number here, welcome to contact Eshine sales or send your drawing or part number.
